MI 300
No measurement Mission is Impossible with a MI !!!

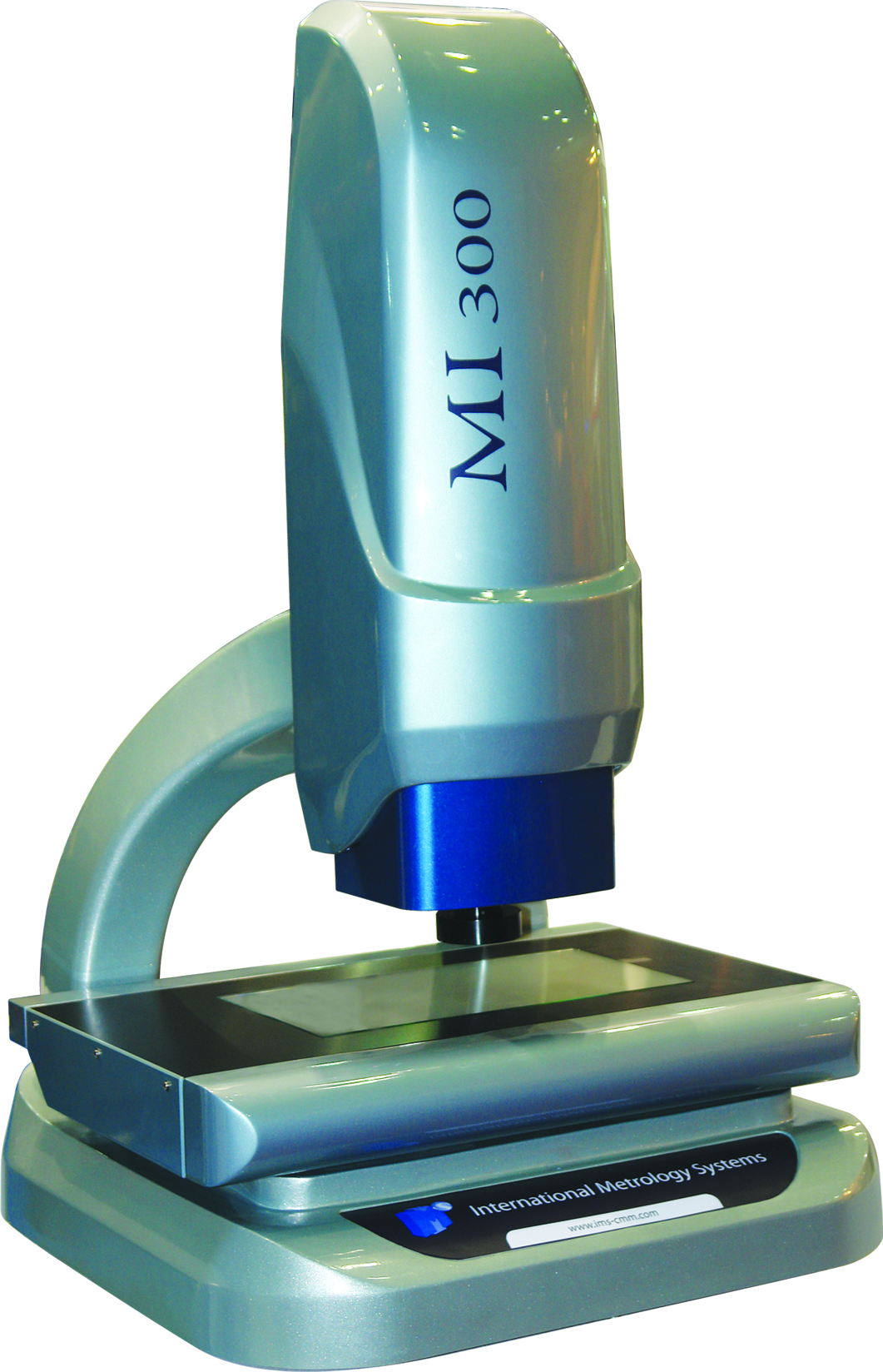

The MI range machines feature an ultra high resolution CCD camera, automatic zoom lens, tri-directional programmable lighting system, and fast auto-focus. Combined with an optional touch probe (TP20 or TP200) or a laser sensor, the MI machines provide highest degree of accuracy and repeatability in 2D and 3D measuring operations, in particular, high speed Z axis height measurement. The MI machines are universally reliable in shop floor environment as well as clean room environment and can be utilized for a multitude of applications in a wide variety of industries.
Catalog >>
Specifications
| Model | MI 300 | |
|---|---|---|
| Measuring Range (mm) |
X | 300 |
| Y | 200 | |
| Z | 150 | |
| Overall Dimensions (mm) |
W | 740 |
| L | 738 | |
| H | 1248 | |
| Resolution(µ) | 0.1 | |
| Maximum Permissible Error per ISO 10360-2 (µ,L/mm) |
E1 | E2=3.5+L/250 |
| E2 | E3=3.0+L/200 | |
| Max. 3D move velocity(mm/s) | 300 | |
| Max. 3D acceleration(mm/s2) | 2,598 | |
| Max. Workpiece Weight(kg) | 50 | |
| Electrical consumption | 750 watts | |
| Tolerable environment | 10°C to 40°C | |
| Humidity | 40% ~ 40% non condensing | |
Features
- OnMotion Electronic Control System
- IMS OnMotion 32-bit architecture PCI based, continuous motion servo controller, integrated into system PC
- IMS SIT (Servo and Interface Tower), housing servo power amplifiers and various interfaces
- On-line system diagnostics software.
- Rounded Corner Motion Interpolation software for measuring cycle time optimisation.
- IMS’ Rapid Scan™ technology produces up to 8 points per second offering the most cost effective touch scanning solution.
- Portable joystick teach box unit with interactive function membrane keypad.
| Accessories | |
|---|---|
| Standard | Datum ball |
| Options | Datum ball, Air dryer, Oil and Air filter, System desk and chair |
Software
| Software | Virtual DMIS™ |
|---|---|
| PC | Intel Duo Core, 3GB DDR RAM,2GB Video Card, 750GB Hard Drive |
| OS | Completely designed in Windows 7, 32 and 64 bit, (Compatible also with Windows XP) |
