Minerva
High Performance Horizontal Arm Machine at an Affordable Price

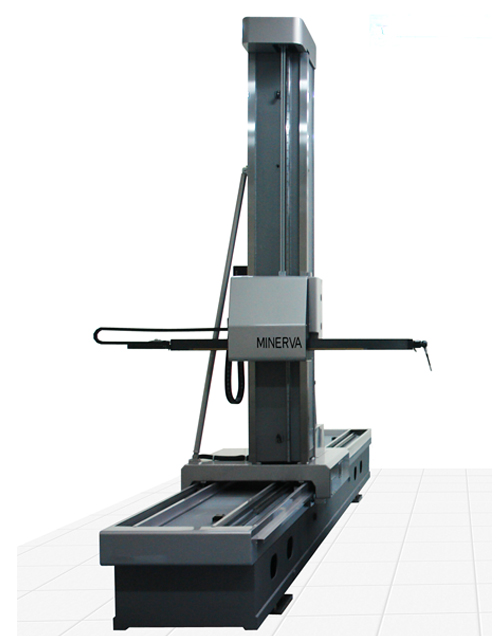

The IMS Minerva consists of a vertical guide member supported on a solid granite or steel base, with a revolutionary lightweight high strength carbon fibre horizontal arm. The carbon fibre material improves dynamic performance and minimizes the historic arm droop normally associated with horizontal arm machines. All IMS machines are designed using the latest 3D CAD and FEA analysis tools to optimize the design. This attention to detail at the design stage ensures reliable accurate performance over many years use, keeping the cost of ownership to a minimum. All the machine components are kinematically mounted and coupled via air bearings to ensure long term stability and to give the best dynamic performance for maximum throughput.
Catalog >>
Specifications
| Model | Minerva Rail | Minerva Side | |
|---|---|---|---|
| Measuring Range (mm) |
X | 2000 to 6000 | 2000 to 3500 |
| Y | 1200 to 2100 | 1200 to 1500 | |
| Z | 1500 to 2200 | 1200 to 2000 | |
| Resolution(µ) | 0.1 | ||
| Maximum Permissible Error per ISO 10360-2 (µ,L/mm) |
P | 250 | |
| E | 1,000 | ||
| Max. 3D move velocity(mm/s) | 300 | ||
| Max. 3D acceleration(mm/s2) | 2,598 | ||
| Max. Workpiece Weight(kg) | 50 | ||
| Electrical consumption | 750 watts | ||
| Air consumption | 12 liters/minutes at 5.5 bar | ||
| Tolerable environment | 10°C to 40°C | ||
| Humidity | 40% ~ 40% non condensing | ||
Larger or special sizes available on request.
Features
- OnMotion Electronic Control System
- IMS OnMotion 32-bit architecture PCI based, continuous motion servo controller, integrated into system PC
- IMS SIT (Servo and Interface Tower), housing servo power amplifiers and various interfaces
- On-line system diagnostics software.
- Rounded Corner Motion Interpolation software for measuring cycle time optimisation.
- IMS’ Rapid Scan™ technology produces up to 8 points per second offering the most cost effective touch scanning solution.
- Portable joystick teach box unit with interactive function membrane keypad.
| Accessories | |
|---|---|
| Standard | Datum ball |
| Options | Datum ball, Air dryer, Oil and Air filter, System desk and chair |
Software
| Software | Virtual DMIS™ |
|---|---|
| PC | Intel Duo Core, 3GB DDR RAM,2GB Video Card, 750GB Hard Drive |
| OS | Completely designed in Windows 7, 32 and 64 bit, (Compatible also with Windows XP) |
