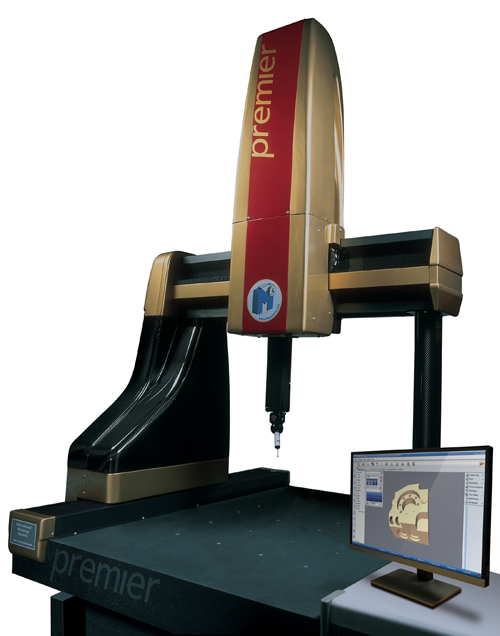

IMS Carbon Fibre Premier CMM
Carbon-Fibre - Speed, Strength and Stability From Formula 1 race cars to America's Cup yachts to High-Performance Aircraft, Carbon-Fibre is the material of choice. IMS has designed the all new Premier series with an all Carbon-Fibre superstructure resulting in the most technologically advanced CMM ever. The entire superstructure (Bridge, Y main carriage, Y support leg and Z axis shaft) is made of the latest Carbon-Fibre materials. Modular design of both the machine and manufacturing tooling has created a complete family of machines up to 3 Meters in length capable of both touch trigger probing and analog scanning, over 30 different models in all.
Catalog >>
Specifications
| Model | Premier 1000 | Premier 1250 | Premier 1500 | |
|---|---|---|---|---|
| Measuring Range (mm) |
X | 1000 | 1250 | 1500 |
| Y | 1000 | 1250 | 1500 | |
| Z | 800 | 800 | 800 | |
| Overall Dimensions (mm) |
W | 1790 | 2040 | 2290 |
| L | 1930 | 2180 | 2430 | |
| H | 3230 | 3230 | 3230 | |
| Resolution(µ) | 0.1 | |||
| Maximum Permissible Error per ISO 10360-2 (µ,L/mm) |
E | 2.5+L/250 | 2.7+L/250 | 3.0+L/250 |
| P | 2.9 | 3.1 | 3.1 | |
| Max. 3D move velocity(mm/s) | 1,039 | |||
| Max. 3D acceleration(mm/s2) | 2,598 | |||
| Max. Workpiece Weight(kg) | 750 | 750 | 900 | |
| Electrical consumption | 750 watts | |||
| Air consumption | 12 liters/minutes at 5.5 bar | |||
| Tolerable environment | 10°C to 40°C | |||
| Humidity | 40% ~ 40% non condensing | |||
Larger or special sizes available on request.
Features
- OnMotion Electronic Control System
- IMS OnMotion 32-bit architecture PCI based, continuous motion servo controller, integrated into system PC
- IMS SIT (Servo and Interface Tower), housing servo power amplifiers and various interfaces
- On-line system diagnostics software.
- Rounded Corner Motion Interpolation software for measuring cycle time optimisation.
- IMS’ Rapid Scan™ technology produces up to 8 points per second offering the most cost effective touch scanning solution.
- Portable joystick teach box unit with interactive function membrane keypad.
| Accessories | |
|---|---|
| Standard | Datum ball |
| Options | Datum ball, Air dryer, Oil and Air filter, System desk and chair |
Software
| Software | Virtual DMIS™ |
|---|---|
| PC | Intel Duo Core, 3GB DDR RAM,2GB Video Card, 750GB Hard Drive |
| OS | Completely designed in Windows 7, 32 and 64 bit, (Compatible also with Windows XP) |
