MI 500/800
No measurement Mission is Impossible with a MI !!!

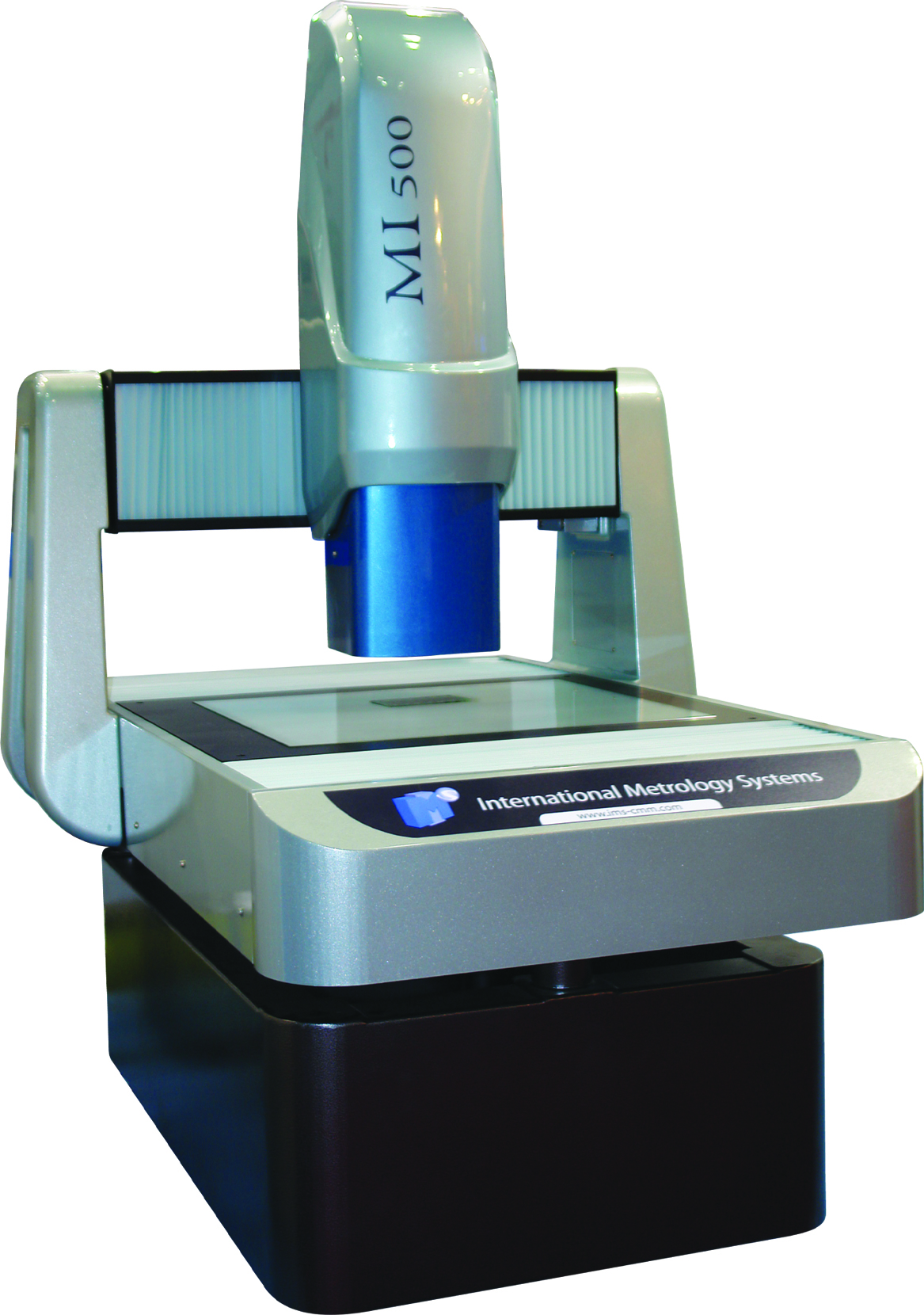

The MI range machines feature an ultra high resolution CCD camera, automatic zoom lens, tri-directional programmable lighting system, and fast auto-focus. Combined with an optional touch probe (TP20 or TP200) or a laser sensor, the MI machines provide highest degree of accuracy and repeatability in 2D and 3D measuring operations, in particular, high speed Z axis height measurement. The MI machines are universally reliable in shop floor environment as well as clean room environment and can be utilized for a multitude of applications in a wide variety of industries.
Catalog >>
Specifications
| Model | MI 500 | MI 800 | |
|---|---|---|---|
| Measuring Range (mm) |
X | 500 | 800 |
| Y | 500 | 600 | |
| Z | 250 | 500 | |
| Overall Dimensions (mm) |
W | 1115 | 1415 |
| L | 1424 | 1624 | |
| H | 1819 | 1824 | |
| Resolution(µ) | 0.1 | ||
| Maximum Permissible Error per ISO 10360-2 (µ,L/mm) |
E1 | E2=3.5+L/250 | |
| E2 | E3=3.0+L/200 | ||
| Max. 3D move velocity(mm/s) | 300 | ||
| Max. 3D acceleration(mm/s2) | 2,598 | ||
| Max. Workpiece Weight(kg) | 50 | ||
| Electrical consumption | 750 watts | ||
| Tolerable environment | 10°C to 40°C | ||
| Humidity | 40% ~ 40% non condensing | ||
Features
- OnMotion Electronic Control System
- IMS OnMotion 32-bit architecture PCI based, continuous motion servo controller, integrated into system PC
- IMS SIT (Servo and Interface Tower), housing servo power amplifiers and various interfaces
- On-line system diagnostics software.
- Rounded Corner Motion Interpolation software for measuring cycle time optimisation.
- IMS’ Rapid Scan™ technology produces up to 8 points per second offering the most cost effective touch scanning solution.
- Portable joystick teach box unit with interactive function membrane keypad.
| Accessories | |
|---|---|
| Standard | Datum ball |
| Options | Datum ball, Air dryer, Oil and Air filter, System desk and chair |
Software
| Software | Virtual DMIS™ |
|---|---|
| PC | Intel Duo Core, 3GB DDR RAM,2GB Video Card, 750GB Hard Drive |
| OS | Completely designed in Windows 7, 32 and 64 bit, (Compatible also with Windows XP) |
