Zeus
Reliable, Accurate and Affordable Gantry Machine

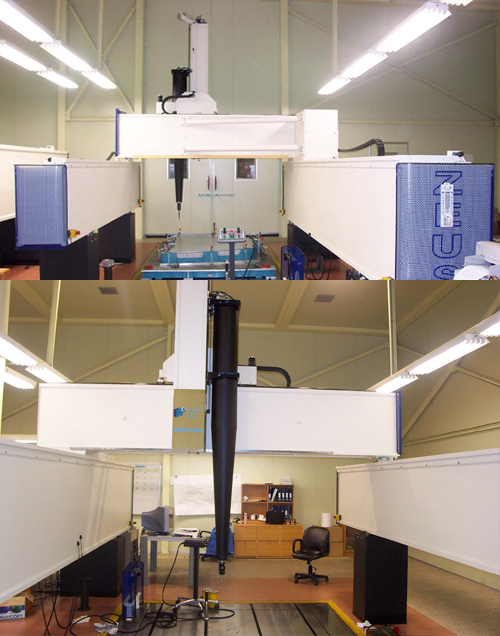

The Zeus CMM design is a moving bridge beam/carriage assembly supported by twin participation hardened steel guide rails mounted on a foundation block, ideally designed for measuring large and heavy components. Steel guide rails provide rigidity, stability and ease of operation. All machine axes float on large surface air bearings that provide precision movement. All critical components are enclosed providing environmental protection. The Zeus is a 'walk-in' type Gantry CMM which offers reliable accuracy at affordable price.
Catalog >>
Specifications
| Model | Zeus | |
|---|---|---|
| Measuring Range (mm) |
X | 2000 |
| Y | 6000 | |
| Z | 1750 | |
| Resolution(µ) | 0.1 | |
| Max. 3D move velocity(mm/s) | 250 | |
| Max. 3D acceleration(mm/s2) | 1,000 | |
| Max. Workpiece Weight(kg) | 50 | |
| Electrical consumption | 1.5 kW | |
| Air consumption | 20 liters/minutes at 5.5 bar | |
| Tolerable environment | 10°C to 40°C | |
| Humidity | 40% ~ 40% non condensing | |
Larger or special sizes available on request.
Features
- OnMotion Electronic Control System
- IMS OnMotion 32-bit architecture PCI based, continuous motion servo controller, integrated into system PC
- IMS SIT (Servo and Interface Tower), housing servo power amplifiers and various interfaces
- On-line system diagnostics software.
- Rounded Corner Motion Interpolation software for measuring cycle time optimisation.
- IMS’ Rapid Scan™ technology produces up to 8 points per second offering the most cost effective touch scanning solution.
- Portable joystick teach box unit with interactive function membrane keypad.
| Accessories | |
|---|---|
| Standard | Datum ball |
| Options | Datum ball, Air dryer, Oil and Air filter, System desk and chair |
Software
| Software | Virtual DMIS™ |
|---|---|
| PC | Intel Duo Core, 3GB DDR RAM,2GB Video Card, 750GB Hard Drive |
| OS | Completely designed in Windows 7, 32 and 64 bit, (Compatible also with Windows XP) |
