Premier X Series

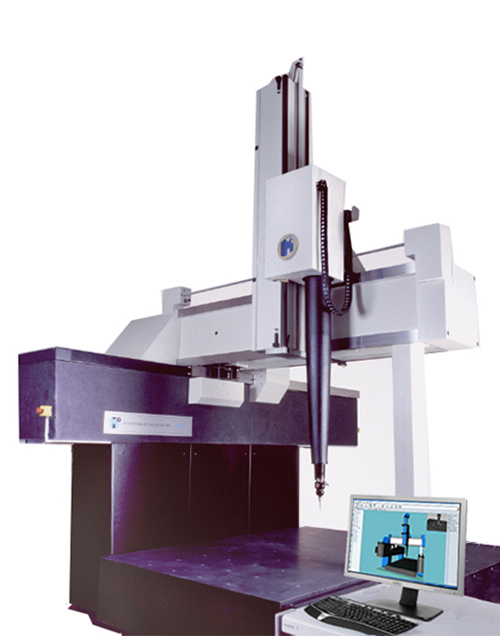

Premier X Series Gantry and Semi-Gantry CMMs


All Premier X series machines feature high precision granite Master and All Premier X series machines feature high precision granite Maters and Secondary Beams and air bearings on all axes. Pneumatic counter balance and innovative self-tracking backlash free "Koala" drive system precision control of machine move. Premier X series machines come in two types. XT type a is high accuracy "Semi-Gantry" CMM and built with an 'integral' high precision granite table and does not require foundation. Ideal if you don't want expensive foundation work or plan to move the machine to a different location in the future. XL type is a high accuracy "Gantry" CMM of 'walk-in' design and requires foundation. Ideal if your factory has already solid foundation or you want to utilize an existing cast iron/granite table.




Catalog >>
Specifications

Model XL
Measuring Range
(mm)		 X 2000
Y 5000
Z 1750
Resolution(µ) 0.1
Max. 3D move velocity(mm/s) 250
Max. 3D acceleration(mm/s2) 1,000
Max. Workpiece Weight(kg) 50
Electrical consumption 1.5 kW
Air consumption 20 liters/minutes at 5.5 bar
Tolerable environment 10°C to 40°C
Humidity 60% +/- 30% non condensing

Larger or special sizes available on request.

Features

  • OnMotion Electronic Control System
  • IMS OnMotion 32-bit architecture PCI based, continuous motion servo controller, integrated into system PC
  • IMS SIT (Servo and Interface Tower), housing servo power amplifiers and various interfaces
  • On-line system diagnostics software.
  • Rounded Corner Motion Interpolation software for measuring cycle time optimisation.
  • IMS’ Rapid Scan™ technology produces up to 8 points per second offering the most cost effective touch scanning solution.
  • Portable joystick teach box unit with interactive function membrane keypad.

Accessories
Standard Datum ball
Options Datum ball, Air dryer, Oil and Air filter, System desk and chair
Software

Software Virtual DMIS™
PC Intel Duo Core, 3GB DDR RAM,2GB Video Card, 750GB Hard Drive
OS Completely designed in Windows 7, 32 and 64 bit, (Compatible also with Windows XP)
