IMPACT

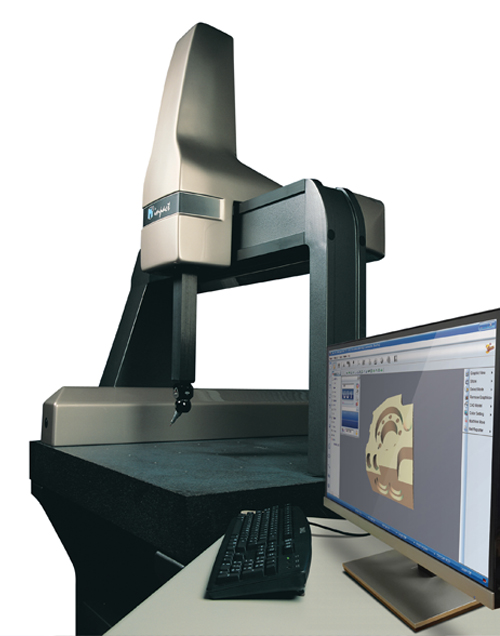

Fast, Accurate and Affordable Impact CMM
The Impact range sets the benchmark for a high performance CMM at affordable pricing. In light with the IMS latest technologies, Impact uses lightweight yet stiff carbon fibre for the construction of the Z column along with Aluminium Alloy for the bridge section. Both materials offer an excellent stiffness to weight ration providing a better dynamic performance for the machine. The Impact features high accuracy, class leading rapid CNC measuring cycles with acceleration rates of 2500mm/sec2 to reach 860mm/sec 3D traverse speeds and the built-in endurance to withstand the rigors of the shop floor. Incorporating IMS’ unique RapidScan™ technology, it can acquire 8 points per second using a typical touch trigger probe.
Catalog >>
Specifications
| Model | Impact 5.6.5 | Impact 8.10.7 | Impact 10.15.7 | |
|---|---|---|---|---|
| Measuring Range (mm) |
X | 500 | 750 | 1000 |
| Y | 600 | 1000 | 1500 | |
| Z | 450 | 650 | 650 | |
| Overall Dimensions (mm) |
W | 1123 | 1446 | 1696 |
| L | 1280 | 1620 | 2120 | |
| H | 2415 | 2750 | 2750 | |
| Resolution(µ) | 0.1 | |||
| Maximum Permissible Error per ISO 10360-2 (µ,L/mm) |
E | 2.5+L/250 | 2.7+L/250 | 3.0+L/250 |
| P | 2.9 | 3.1 | 3.1 | |
| Max. 3D move velocity(mm/s) | 860 | |||
| Max. 3D acceleration(mm/s2) | 2500 | |||
| Max. Workpiece Weight(kg) | 500 | 750 | 750 | |
| Electrical consumption | 750 watts | |||
| Air consumption | 12 liters/minutes at 5.5 bar | |||
| Tolerable environment | 10°C to 40°C | |||
| Humidity | 40% ~ 40% non condensing | |||
Larger or special sizes available on request.
Features
- OnMotion Electronic Control System
- IMS OnMotion 32-bit architecture PCI based, continuous motion servo controller, integrated into system PC
- IMS SIT (Servo and Interface Tower), housing servo power amplifiers and various interfaces
- On-line system diagnostics software.
- Rounded Corner Motion Interpolation software for measuring cycle time optimisation.
- IMS’ Rapid Scan™ technology produces up to 8 points per second offering the most cost effective touch scanning solution.
- Portable joystick teach box unit with interactive function membrane keypad.
| Accessories | |
|---|---|
| Standard | Datum ball |
| Options | Datum ball, Air dryer, Oil and Air filter, System desk and chair |
Software
| Software | Virtual DMIS™ |
|---|---|
| PC | Intel Duo Core, 3GB DDR RAM,2GB Video Card, 750GB Hard Drive |
| OS | Completely designed in Windows 7, 32 and 64 bit, (Compatible also with Windows XP) |
